Unused Alstom 160 MW Steam Turbine Generator for Sale, 60 Hz
2006 · never fired · 1900 psia at 1050°F, reheat
On site1 image

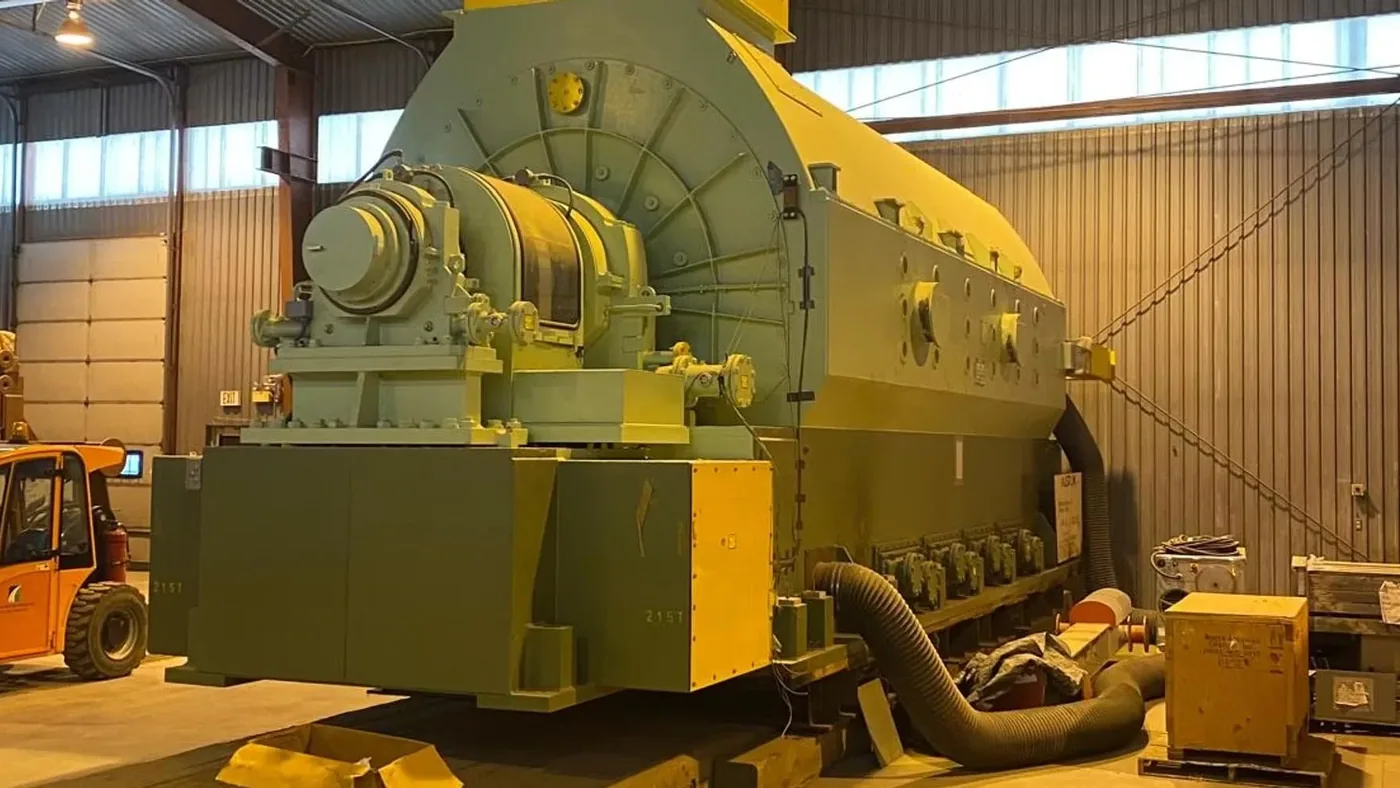

An unused Alstom 160 MW reheat steam turbine generator set, built in 2006 and never fired, complete with its 187.65 MVA, 18 kV TEWAC generator, static excitation, control valves, gland sealing skid, sound enclosure, auxiliaries and tooling. Steam inlet 1900 psia at 1050°F, reheat to 1050°F, maximum throttle flow 835,000 lb/h. 60 Hz service.
OEMAlstom (GE)
Model160 MW reheat steam turbine generator set, serial 60 WY21Z-085
Equipment typeSteam turbine generator
Quantity1
Rating160 MW
Frequency60 Hz
Year2006
Operating hours0, never fired
ConfigurationReheat condensing. Inlet 1900 psia at 1050°F, reheat to 1050°F, maximum throttle flow 835,000 lb/h
Scope of supplyTurbine assembly, steam control valves and operators, gland sealing skid, 187.65 MVA 18 kV TEWAC generator, static excitation and power system stabiliser, sound enclosure with HVAC and lighting, controls, fire protection, electrical package with MCCs, oil systems, tools and maintenance equipment, inlet piping from the valves to the turbine
